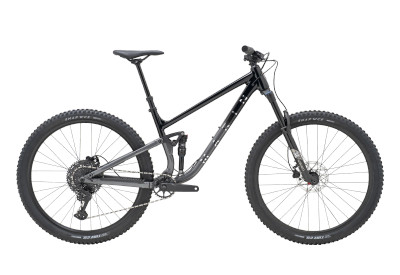

Marin: Rift Zone 1 27.5"

Marin: Rift Zone 1 - 27.5 " wheels

*Formerly called Hawk Hill 1*

The Rift Zone 1 is a full suspension mountain bike from Marin that  was made for having fun on the trails and brings together 27.5" wheels, 130mm of rear travel, a lightweight aluminum frame and their super-plush MultiTrac suspension platform for endless good times on the trails.

The Rift Zone 1 is also available with 29" wheels.

COLOR

Charcoal Black, Orange Blue

SIZE / Rider height range

XS: 5'1" - 5'4"

S: 5'4" - 5'7"

M: 5'7" - 5'10"

L: 5'10" - 6'1"

XL: 6'1" - 6'4"

SPECS

FRAME

All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION

X-Fusion Sweep Boost RC, 27.5", 140mm Travel, Compresion and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

REAR SUSPENSION

X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

RIMS

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

HUB, REAR

Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

HUB, FRONT

Shimano HF-MT400B, 110x15mm, Centerlock

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready

DERAILLEUR, REAR

Shimano Deore, 11 Speed, SGS

DERAILLEUR, FRONT

-

SHIFT LEVER

Shimano Deore, 11-Speed, SL-5100R

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

KMC X-11 Silver and Black

CASSETTE

Sunrace, 11-Speed, 11-51T, ED Black

BRAKE, FRONT

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE, REAR

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BL-MT201

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

Marin Alloy, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

-

EXTRAS

Closed 9-12 Thru-Axle QR System

*Specifications, pricing, and availability are subject to change without notice.

TECH

SERIES 3 ALUMINUM FRAME + 27.5” WHEELS

The Rift Zone 27.5 has a Series 3 6061 butted and hydroformed aluminum frame with 130mm travel MultiTrac suspension technology and playful 27.5” wheels. 27.5” wheels fit most riders better and create a lightweight and responsive bike, the most playful trail bike in the line.

MULTITRAC SUSPENSION TECHNOLOGY

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

MODERN TRAIL GEOMETRY

Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle, combined with lightweight and responsive 27.5” wheels make for a playful and quick handling bike.

INTERNAL ROUTING

Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up.148X12MM THRU-AXLE

Boost front spacing is paired with a 148x12mm Boost rear thru-axle on the Rift Zone 27.5 XR and Rift Zone 27.5 2 for frame and wheel strength, and future wheel upgrade compatibility.

CLOSED 9-12 AXLE

The Rift Zone 27.5 1 is spec’d with a 141x9mm axle that is upgradable to a Boost 148x12mm standard, allowing for more options if you decide to take your bike to the next level.

NEW CHAINSTAY/SEATSTAY PROTECTORS & UDH ON ALLOY MODELS

2023 Rift Zone Alloy models have enhanced chainstay and seat stay protectors for a quiet ride, and utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame.
