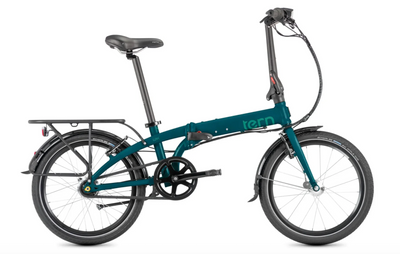

Tern: Link D7i

Tern: Link D7i

The Link D7i is a comfortable and stylish city bike from Tern that is an excellent choice to get up and going to improve your daily health. The Link can be conveniently stored away at home or taken with you on different forms of public transportation.

FEATURES

• 7-speed internal geared Shimano hub for versatility and low maintenance

• Andros™ handlebar stem for tool-free riding position adjustments on the fly

• FreeDrive™ chain cover protects your clothes from grease and dirt

• Bomb-proof wheels built with Sapim spokes

• Schwalbe Big Apple tires with Kevlar puncture protection

• Fenders for rainy days

• Folds compactly in 10 seconds for storage and transport

• Rear rack and integrated lighting included

• 20" Wheels

COLOR

Satin Shale

TECHNOLOGY

N-Fold™ Technology

The faster fold

With N-Fold Technology, Tern bikes fold small and fast—in three easy steps. It’s simple enough for anybody to master. And with the handlepost folded to the outside of the package, Tern bikes can also roll when folded for easy transport.

Physis™ 3D Handlepost

The new benchmark

Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.

Andros™ Stem

Adjust to fit

The Andros is Terns patented adjustable stem that lets you set your handlebars where you want—no tools, no fuss. In just seconds, you can set your riding position to long and low in a tough headwind, or upright and comfy for riding around town. You decide how you want to ride and the Andros makes your bike fit.

Shimano Nexus® 7 Hub Gear

Everything inside

Shimano tucks 7 smooth and evenly spaced gears inside the rear hub, protected from water, salt, and road grit. The best choice when you need reliability and low-maintenance.

Schwalbe Big Apple Tires

Cush for your tush

Big Apples are special because they’re fast rolling AND super comfy. Sounds hard to believe but you’ll just have to take them for a ride to become a believer.

BioLogic FreeDrive™

Clean up your act

The BioLogic FreeDrive fits around the chain and keeps grease away from your pants. The unique design moves with the chain so there’s no extra friction.

SPECIFICATIONS

GENERAL INFO

SPEEDS:

1 x 7

WEIGHT:

14.4 kg (31.7 lb)

GEAR INCHES:

33" - 80" (2.62 - 6.41 m)

FOLDING SIZE:

380 × 790 × 720 mm (15 × 31.1 × 28.3 in)

FOLDING TIME:

10 sec

FRAME SIZES:

One size

DISTANCE: SEATPOST TO HANDLEBAR:

62 - 69 cm (24.4 - 27.2 in)

DISTANCE: SADDLE TO PEDAL:

70 - 96 cm (27.6 - 37.8 in)

SUGGESTED RIDER HEIGHT:

142 - 190 cm (55.9 - 74.8 in)

MAX GROSS VEHICLE WEIGHT:

120 kg (264.6 lb)

MAX LOAD WEIGHT:

105 kg (231.5 lb)

MAX RIDER WEIGHT:

105 kg (231.5 lb)

FRAME

FRAME:

Tern Link, aluminum, OCL Joint, 3 patented technologies

FORK:

Integrated, hi-tensile steel

COCKPIT

HANDLEPOST:

Tern Physis 3D (G2), 3D forged, 5 patented technologies

STEM:

Tern Andros (G2), adjustable, forged construction, patented technology

HEADSET:

Flux, cartridge bearings, Physis integrated

HANDLEBAR:

Flat bar, 6061-Al, Andros butted

GRIPS/BAR TAPE:

Velo ergonomic, lock-on

SADDLE:

BioLogic Como DLX

SEATPOST:

SuperOversize, 6061-Al, micro-adjust clamp

SEATPOST CLAMP:

SuperOversize, 6061-Al

BRAKES

FRONT BRAKE:

V, aluminum, linear spring

REAR BRAKE:

V, aluminum, linear spring

BRAKE LEVERS:

V, aluminum bracket/lever

BRAKE CABLE & HOUSING:

Anti-compression housing, slick cables

WHEELS

FRONT HUB:

BioLogic Joule II dynamo

REAR HUB:

Shimano Nexus 7 freewheel

SPOKES AND NIPPLES:

Sapim Leader, stainless steel

RIMS:

Doublewall aluminum

TIRES:

Schwalbe Big Apple, 50-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S):

Shimano Nexus 7 spd

CRANKSET:

Forged 6061 aluminum crank arms, hand-polished

CASSETTE/FREEWHEEL:

17T

BOTTOM BRACKET:

Cartridge, sealed bearings

CHAIN:

408H

PEDALS:

Folding, alloy body

SHIFTER CABLE & HOUSING:

Shimano

BELLS & WHISTLES

BELL:

Aluminum

CHAINGUARD:

BioLogic FreeDrive

KICKSTAND:

Deluxe center mount

CLIP SYSTEM:

Magnetix 2.0

LUGGAGE SOCKET:

Yes

FRONT LIGHT:

Included: Tern Valo 2, integrated, 41 lux/150 lumens

REAR LIGHT:

Included: Deluxe LED

FENDERS:

RP Chromeplastic, stainless hardware

RACK(S):

Included: Tern Loader Rack

*Note: These are Tern's standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. Tern does their best to ensure that the specifications listed here accurately reflect the exact parts found on their production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. Tern reserves the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
