Orbea Bikes
Orbea: Gain D30 - 2025

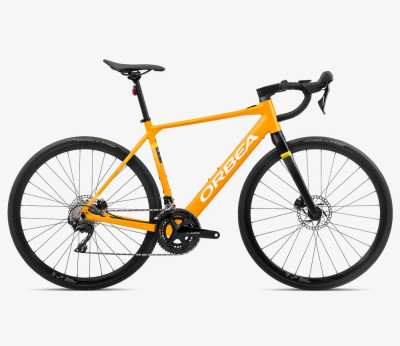

Orbea | Gain D30 | Mango (Gloss) - Black (Matt)

Orbea Bikes

Orbea: Gain D30 - 2025

$3,999.00
(1 review) Write a Review
Condition:
New
Adding to cart… The item has been added

Description



ORBEA: GAIN ROAD D30



Custom order to be made in Spain.







COLOR



Mango (Gloss) - Black (Matt), Borealis Blue (Gloss) - Black (Matt), Metallic Silver (Matt) - Black (Gloss)







SIZE / HEIGHT



XS / 59.1" - 63.0"



S / 63.0" - 66.9"



M / 66.9" - 70.9"



L / 70.9" -74.8"



XL / 74.8" - 78.7"







SPECIFICATIONS







FRAMESET

FRAME

Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.

FORK

Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm

HEADSET

Acros Alloy 1-1/2" Internal Cable Routing

DRIVETRAIN

CRANKSET

Shimano RS520 34x50t

SHIFTERS

Shimano R7120

CASSETTE

Shimano 105 R7100 11-34t 12-Speed

REAR DERAILLEUR

Shimano 105 R7100

FRONT DERAILLEUR

Shimano 105 R7100

CHAIN

Shimano M6100

COCKPIT

HANDLEBAR

OC Road Performance RP31, Reach 80, Drop 125

STEM

OC Road Performance RP21, -6º

BRAKES

BRAKES

Shimano R7170 Hydraulic Disc

BRAKES CONFIGURATION


WHEELS

WHEELS

Alloy, Tubeless, 700c, 21c, 32H

TYRES

Pirelli P7™ Sport 700x32c

FRONT WHEEL AXLE

Orbea Thru Axle 12x100mm M12x2 P1 Hollow

COMPONENTS

SEATPOST

Alloy, 27.2mm, Setback 0, for integrated light

SADDLE

Fizik Aliante R5

ACCESSORIES

FRONT LIGHT

Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.

REAR LIGHT

Lezyne FENDER STVZO seatpost mounting 11 lumens

HANDLEBAR TAPE

Orbea Eva

EBIKE

MOTOR

Mahle motor hub X35 Plus 20mph

BATTERY

Mahle 36V/6.9A 248Wh ANT+

RANGE EXTENDER

N/A

DISPLAY

Mahle Pulsar One monochrome ANT+ LEV

CHARGER

Mahle X35

REMOTE

Mahle iWoc ONE







We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
