Cannondale: FlyingV

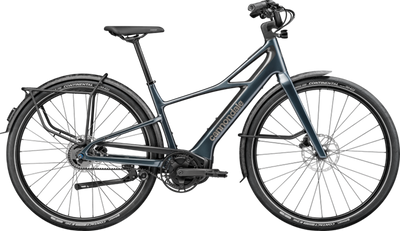

Cannondale Flying V Electric Bike – Full Specifications

The Cannondale Flying V electric bike is a high-performance carbon fiber e-bike engineered for urban commuting, fast-paced city riding, and everyday mobility. Combining a lightweight carbon chassis with premium commuter components and the latest Bosch Smart System motor, this 28 mph electric bike delivers a smooth, efficient, and low-maintenance ride.

Carbon Frame
Built around a sleek Cannondale Flying V carbon frame, this design features lightweight construction, an internal downtube battery, fully integrated cable routing, 135mm dropout spacing, a 1.5-inch headtube, flat mount disc compatibility, a removable 40mm Pletscher-style kickstand mount, and a concealed holder for a Bluetooth tracker like an Apple AirTag or Chipolo.

Carbon Fork
The matching lightweight carbon fork includes a 1.25" to 1.5" tapered steerer, internal cable routing, flat mount disc brake support, and a 12x100mm thru-axle for sharp handling and front-end stiffness.

Wheelset
Ryde alloy double-wall rims with 32 holes and a 25mm internal width offer durability and stability for daily commuting and city streets.

Front and Rear Hubs
The front wheel uses a Shimano TC500 12x100mm thru-axle hub, while the rear is equipped with a Shimano Nexus 5-speed internal gear hub, offering dependable shifting with minimal upkeep.

Spokes
DT Swiss Champion spokes add trusted strength and long-term reliability.

Urban Tires
Continental Contact Urban 700x50c tires are designed for comfort, traction, and confidence on pavement, making them ideal for electric city bike use.

Pedals
Cannondale Urban Platform pedals provide stable support for daily riding.

Crankset
A Samox Bosch e-bike crankset with left 0 offset and right 13mm offset is paired with a 52T Gates sprocket for efficient power transfer.

Belt Drive System
This model features a Gates CDX CenterTrack carbon belt drive with a 132T belt and Gates CDC 36T rear cog, creating a quiet, clean, and low-maintenance alternative to a traditional chain.

Internal Gear Drivetrain
The Shimano Nexus Inter-5E 5-speed hub is purpose-built for e-bikes, offering smooth shifting and durability for commuter electric bike riders.

Shifting
A microSHIFT 5-speed trigger shifter provides simple and precise gear selection.

Handlebar Setup
The Cannondale Urban Backsweep handlebar features a 93mm rise, 24-degree backsweep, 31.8 clamp diameter, and 700mm width to promote a comfortable, upright riding position.

Bosch Motor System
Power comes from the Bosch Performance Line Sprint Smart System drive unit, producing 60Nm of torque, 600W maximum output, and 250W nominal power, with pedal assist up to 28 mph. This makes the Flying V an excellent option for riders seeking a fast electric commuter bike.

Grips
Ergon GA3 grips enhance hand comfort and control.

Battery
The integrated Bosch CompactTube 400Wh battery offers a clean profile and reliable power for daily rides and urban transportation.

Stem
A Cannondale C1 Conceal alloy stem with a 31.8 clamp and -6° angle includes an SP-Connect SPC+ mount top cap for added convenience.

Display and Controls
The Bosch LED Remote provides intuitive control of the bike’s electric assist system.

Headset
An integrated sealed bearing headset with tapered design and internal cable routing keeps the front end clean and efficient.

Charger
Includes a Bosch 2A charger.

Hydraulic Disc Brakes
Shimano UR300 hydraulic disc brakes with 180mm front and rear RT64 rotors deliver powerful and reliable braking performance in varied urban conditions.

Saddle
A Selle Royal Essenza Moderate Wide saddle adds comfort for commuting and recreational rides.

Seatpost
The Cannondale 3 alloy seatpost is made from 6061 aluminum and comes in multiple lengths by frame size: 300mm for Small, 350mm for Medium, and 400mm for Large and XL.

Available Sizes
Small, Medium, Large, and XL.

Commuter-Ready Accessories
The Cannondale Flying V comes fully equipped with custom full-coverage carbon fenders, a Supernova Mini2 LDM front light, a Supernova TL3-Z rear light with integrated reflector, a rear pannier rack with a 40 lb carrying capacity, and a kickstand.

Why the Cannondale Flying V Stands Out
For riders searching for a premium electric commuter bike, lightweight carbon e-bike, or Bosch-powered urban electric bicycle, the Cannondale Flying V delivers a compelling combination of speed, comfort, utility, and low-maintenance performance.
